Описание продукта

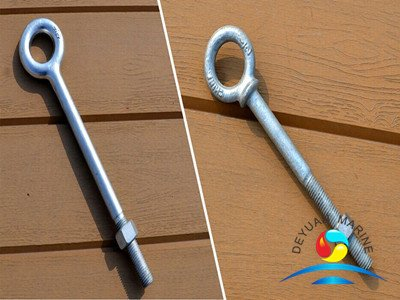

США тип G277 болты с проушиной из кованой стали с оцинкованной гайкой с буртиком
| Размер | WLL | масса 100 шт | Размеры (дюймы) | ||||||||
| (в) | (фунты) | (фунты) | A | B | C | D | E | F | G | H | J |
| 1/4x2 | 500 | 6.61 | 0.25 | 0.5 | 0.88 | 0.19 | 1.5 | 2 | 2.94 | 0.5 | 0.47 |
| 1/4x4 | 500 | 9.61 | 0.25 | 0.5 | 0.88 | 0.19 | 2.5 | 4 | 4.84 | 0.5 | 0.47 |
| 5/16x2 1/4 | 800 | 12.5 | 0.31 | 0.62 | 1.12 | 0.25 | 1.5 | 2.25 | 3.5 | 0.69 | 0.56 |
| 5/16x4 1/4 | 800 | 18.75 | 0.31 | 0.62 | 1.12 | 0.25 | 2.5 | 4.25 | 5.5 | 0.69 | 0.56 |
| 3/8x2 1/2 | 1200 | 19 | 0.38 | 0.75 | 1.38 | 0.31 | 1.5 | 2.5 | 3.97 | 0.78 | 0.66 |
| 3/8x4 1/2 | 1200 | 31.58 | 0.38 | 0.75 | 1.38 | 0.31 | 2.5 | 4.5 | 5.97 | 0.78 | 0.66 |
| 1/2x3 1/4 | 2200 | 37.5 | 0.5 | 1 | 1.75 | 0.38 | 1.5 | 3.25 | 5.12 | 1 | 0.91 |
| 1/2x6 | 2200 | 56.25 | 0.5 | 1 | 1.75 | 0.38 | 3 | 6 | 7.88 | 1 | 0.91 |
| 5/8x4 | 3500 | 75 | 0.62 | 1.25 | 2.25 | 0.5 | 2 | 4 | 6.44 | 1.31 | 1.12 |
| 5/8x6 | 3500 | 100.25 | 0.62 | 1.25 | 2.25 | 0.5 | 3 | 6 | 8.44 | 1.31 | 1.12 |
| 3/4x4 1/2 | 5200 | 125 | 0.75 | 1.5 | 2.75 | 0.62 | 2 | 4.5 | 7.44 | 1.56 | 1.38 |
| 3/4x6 | 5200 | 150 | 0.75 | 1.5 | 2.75 | 0.62 | 3 | 6 | 8.94 | 1.56 | 1.38 |
| 7/8x5 | 7200 | 225 | 0.88 | 1.75 | 3.25 | 0.75 | 2.5 | 5 | 8.47 | 1.84 | 1.56 |
| 1x6 | 10000 | 375 | 1 | 2 | 3.75 | 0.88 | 3 | 6 | 9.97 | 2.09 | 1.81 |
| 1x9 | 10000 | 429 | 1 | 2 | 3.75 | 0.88 | 4 | 9 | 13 | 2.09 | 1.81 |
| 1 1/4x8 | 15200 | 650 | 1.25 | 2.5 | 4.5 | 1 | 4 | 8 | 12.7 | 2.47 | 2.28 |
| 1 1x4x12 | 15200 | 775 | 1.25 | 2.5 | 4.5 | 1 | 4 | 12 | 16.7 | 2.47 | 2.28 |
| 1 1/2x15 | 21400 | 1425 | 1.5 | 3 | 5.5 | 1.25 | 6 | 15 | 20.8 | 3 | 2.75 |
