Product Description

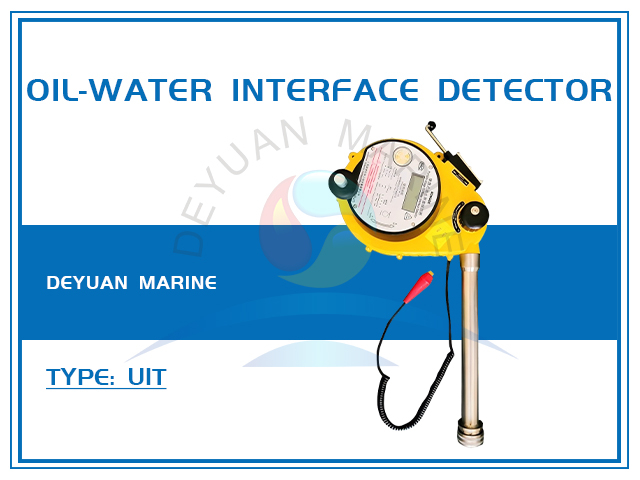

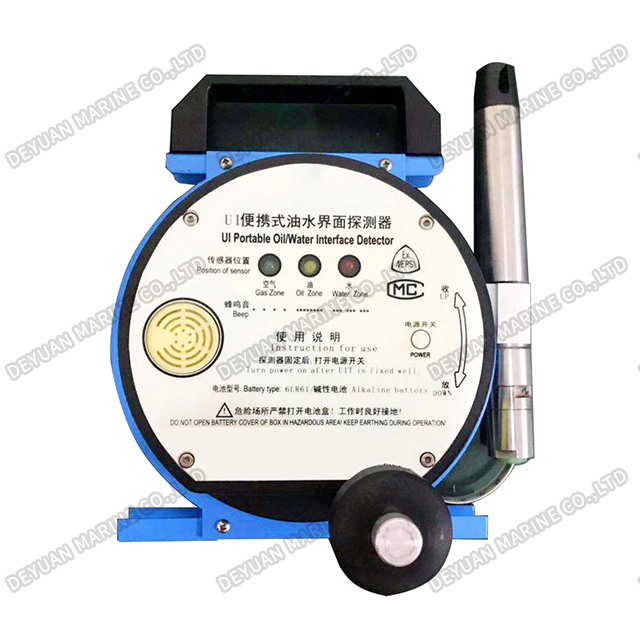

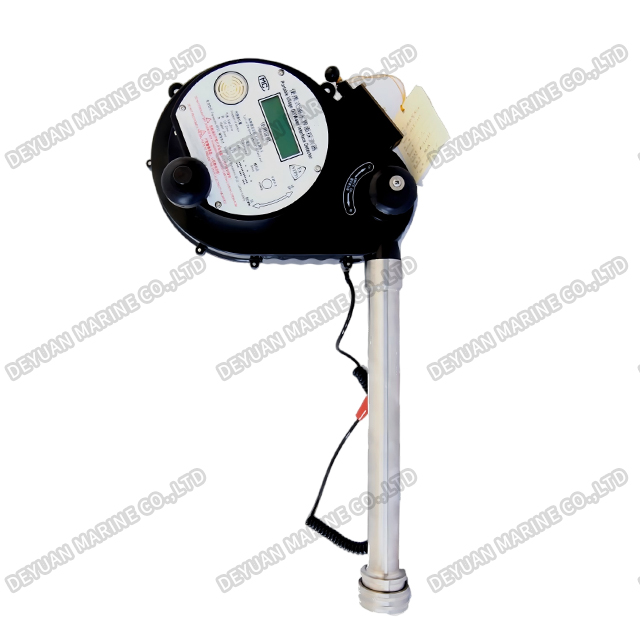

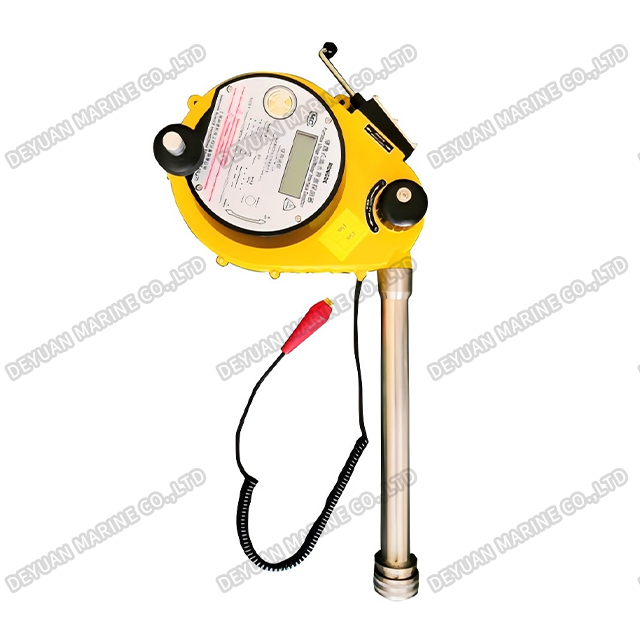

UIT Oil-Water Interface Detector
Product Introduction:
UIT oil-water interface detector is a portable device, which consists of probe, ruler with signal transmission function, display and shell. This equipment can be conveniently used to measure the oil level and water levelin the same tank, and at the same time, it can detect the temperature of these oils or water. The design, manufacture and inspection of the detector meet the requirements of CB/T4182-2011 and MEPC5(Xlll)
Technical Specifications for Oil-water Interface Detector. The product has measurement license, explosion-proof certificate and product type approval certificate of CCS and LR.
Technical Specifications:
| Measurement accuracy | ±5mm |
| Length of tape measure | 15m,30m |
| Tape measure specification | metric system |
| Minimum scale | 1mm |
| Probe diameter | 23mm |
| Minimum detection liquid level | 6mm |
| Measuring density difference range | 0.06 ~ 0.25 g/cm |
| Ambient service temperature range | -25~55°C |
| Temperature range of detection medium | -25~80°C |
| Display mode | visual |
| Reaction time | < 3s |
| Explosion-proof grade | EXALLBT 4 |
| Enclosure protection grade | IP44 |
| Probe protection grade | IPX8 |
| Interface standard | JB/ZQ04078-1997 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
